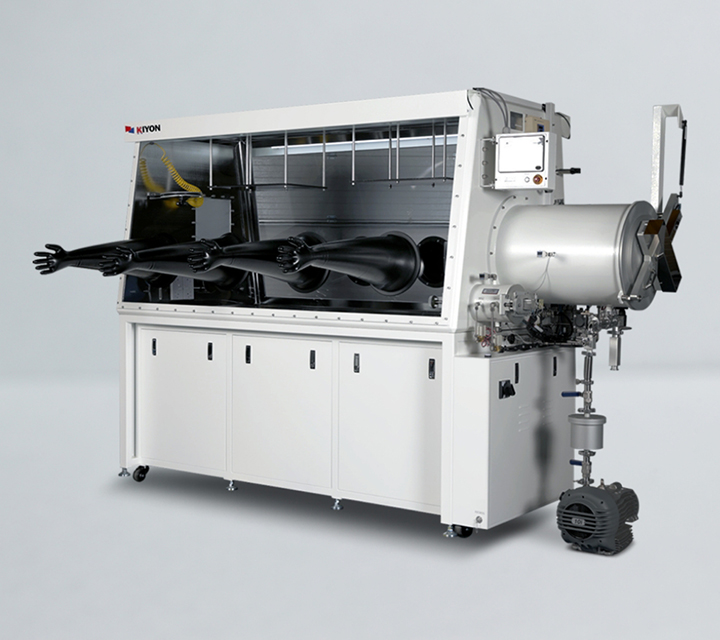

glovebox

kk-021ad

Glovebox is designed to provide a hermetically
sealed & highly customized working space
under a very tightly controlled.

  • 4 Person NUMBER OF USERS
  • 8 EA GLOVE PORTS
  • Less than 1 PPM OXYGEN & MOISTURE

Basic composition

characteristic
  • Less than 1PPM of Oxygen and Moisture concentration level inside
design
  • Stainless steel design with polycarbonate window
  • Modular box design
configuration
  • Large antechamber with sliding tray
  • Mini-Antechamber
  • Embedded inert gas purification system
  • Vacuum pump
  • High efficiency box filters
  • Casters and leveling feet
  • Glovebox is designed to provide a hermetically sealed&highly customized working space under a very tightly controlled.
  • Glovebox expansion features include additional antechambers for flow processes, cold storage freezers,
    process vacuum ovens and furnaces and full line of accessories.

Specification

Basic Composition Size 2,200(L) x 900(H) x 1,200(D) mm
Material SUS304
Windows Poly-Carbonate PC or Safety Glass
Glove Butyl Rubber 4 Pair
External Light 4ea(LED)
Service Port KF(NW40): 2ea
Leak Test 0.05 vol%/hr According to ISO 10648-2
Antechamber Size 390 x 600 mm
Vacuum Capacity 1 x 10-3 torr
Merterial sus 304
Mini-Antechamber Size 150 x 290 mm
Purifier System Purifity Level Less than 1 ppm O2 and H2O
Catalyst Oxygen Catalyst and Modecular sieve
PLC Automatic PLC control
Control Panel 7˚Full Color Touch Screen
Purifier Regeneration Auto Regeneration programmed on PLC
Blower Speed Control Max. 63 CFM (1.78m3/min)
Vacuum Pump 180 ℓ/min
Stand Size 2,200(L) × 936(H) × 1,200(D) mm
